Cooling bed

Cooling beds are widely used in:
Hot rolling mill lines – for rebar, square bars, round bars, etc.
Steel pipe manufacturing – to assist in cooling and alignment of hot pipes.
Aluminum and copper profile production – air cooling and natural alignment.
Shaped and flat steel mills – for cooling and manual inspection.
Whether in the ferrous or non-ferrous metals industry, LYJD cooling beds are designed to improve operational efficiency and product consistency.

The cooling bed is a key component of the rolling mill line, designed to facilitate the natural cooling of hot rolled steel products such as bars, square bars, flat bars or pipes after rolling. The design of the LYJD cooling bed ensures uniform air cooling and minimizes the internal stress of the material, which is essential to maintain product quality and dimensional stability.
As part of the LYJD industrial processing equipment range, our cooling beds are designed according to production layout and material specifications, featuring high performance, durability and customization.

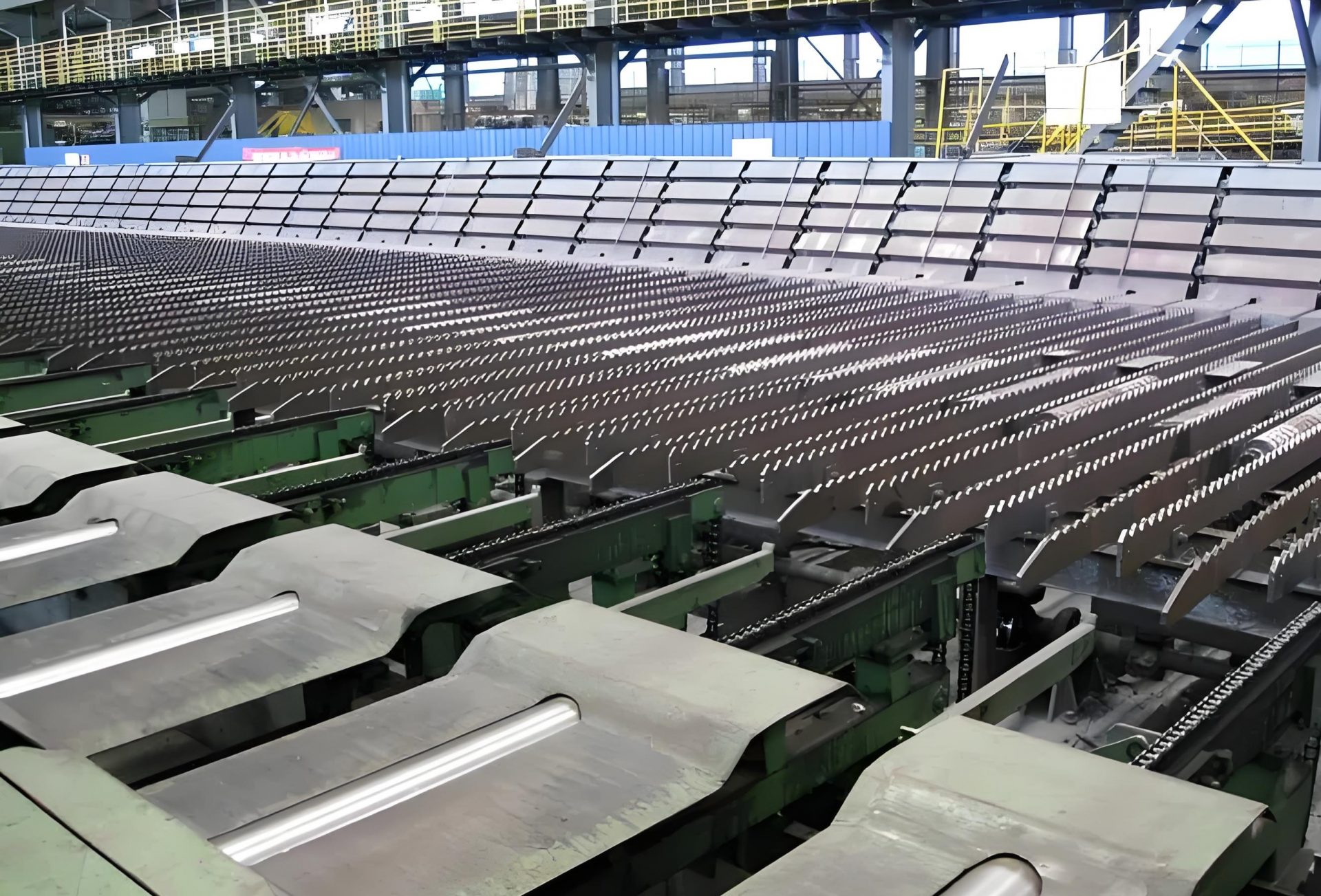

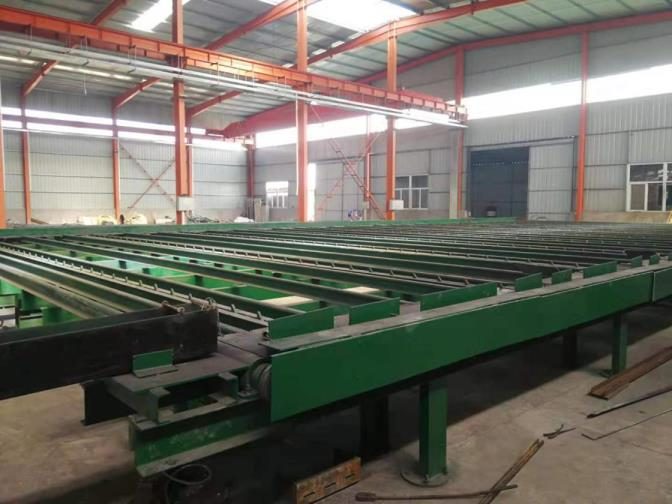

Cooling bed, also known as cooling bed or steel bar cooling rack, is an indispensable auxiliary equipment in metal processing production lines, especially hot rolling mills. Its main structural components include:
Frame structure: high-strength welded steel frame with anti-corrosion surface treatment.
Cooling track: specially arranged parallel cooling tracks (usually rack type or chain type) to evenly cool hot billets or bars.
Drive system: the motor-driven chain transmission system ensures smooth and synchronous movement of materials.
Return chain assembly: equipped with counter-rotating chains or rolling devices to retrieve materials or guide them to the next process.
Gearbox and motor group: used for speed and torque control of various parts of the cooling bed.
Safety mechanism: includes limit switches, emergency stops and guardrails to ensure the safety of operators.

Efficient Cooling: Optimized airflow and material spacing design enables fast and uniform cooling of hot metal.
Durable Structure: Made of high-quality steel, the equipment is not prone to deformation and wear at high temperatures.
Customizable Sizes: Available in various widths and lengths to accommodate different rolling line capacities.
Modular Design: Modular structure ensures easy maintenance and future expandability.
Smooth Material Handling: Precise control system ensures that the bars are not bent, deformed or damaged during the cooling process.
Automatic Operation: Integration with PLC system enables automation of loading/unloading and chain movement.
