Product introduction

Crank shear is a kind of shearing equipment widely used in metallurgy and metal processing industry, which is specially used for fast and efficient shearing of hot-rolled or cold-rolled metal plates, strips and profiles. Due to its simple and reliable structure principle, it is particularly suitable for the shearing process requirements on continuous production lines.

Consult Online [email protected]

Product Introduction
Application
Product Advantages
Product Structure

Product Introduction

Crank shear is a kind of shearing equipment widely used in metallurgy and metal processing industry, which is specially used for fast and efficient shearing of hot-rolled or cold-rolled metal plates, strips and profiles. Due to its simple and reliable structure principle, it is particularly suitable for the shearing process requirements on continuous production lines.

Application

Steel rolling production line (hot rolling, cold rolling)
Metallurgical supporting equipment
Metal recycling enterprises
Metal plate and strip cutting to length
Segment cutting of steel and special-shaped materials

Product Advantages

The crank shear adopts mechanical transmission, with fixed shearing stroke and stable movement. It is suitable for occasions with high requirements for cutting length accuracy, such as fixed-length shearing of high-speed wire and bar rolling mills.
Compact structure and strong rigidity
The overall frame is welded with high-strength steel plates, with excellent rigidity of the machine body, suitable for high-speed operation and high-frequency shearing, long life and strong anti-deformation ability.

Product Structure

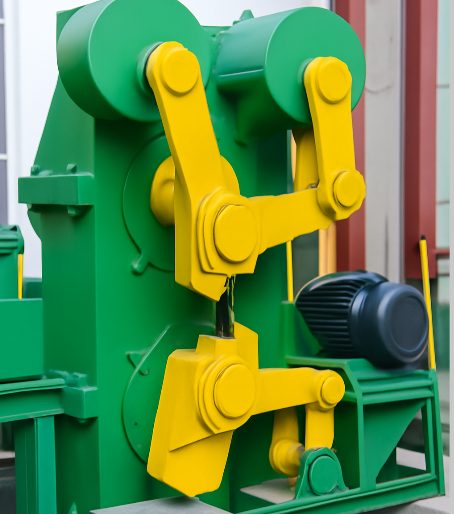

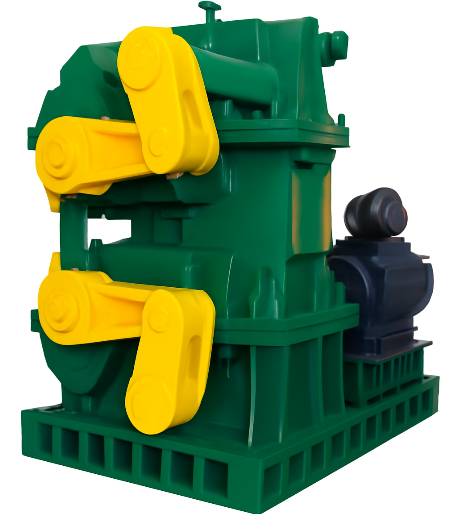

Crank shear is a heavy-duty shearing equipment that uses a crank slider mechanism for transmission. It is mainly composed of the following parts:
Main structure
The shear body is welded with high-strength steel structure and has good rigidity and stability.
Equipped with upper and lower shear blades, installed between the slider and the frame for shearing operations.
Transmission mechanism
Adopts crank-connecting rod-slider mechanism, with compact structure and smooth movement.
The crank is driven by an electric motor and connected to the reducer through a pulley or coupling to achieve shearing action.
Motor and reduction device
The motor is a three-phase asynchronous motor equipped with a high-efficiency reduction box.
Ensure stable output of shearing force and adapt to high-frequency shearing operations.
Hydraulic or mechanical locking system
Used to automatically adjust or lock the shear gap to ensure shearing accuracy.
Operation and control system
Can be equipped with PLC automatic control system to achieve fixed-length shearing, automatic feeding and other functions.
The human-machine interface is intuitive and convenient for operation and maintenance.
