Rolling mill tail plate

Mobile Phone

Product introduction

The mill tail plate is a key auxiliary equipment used at the end of the mill rolling production line. It is mainly used to guide, shape and orderly transport the wire or bar after spinning into a coil, ensuring that the finished wire falls stably on the plate or enters the next process. Its sturdy structure can adapt to the impact load generated by high-speed wire operation and improve the continuity and efficiency of the entire rolling system.

Consult Online [email protected]

Product Introduction
Application
Product Advantages
Product Structure

Product Introduction

Application

High-speed wire rolling production line
Tail guide system of continuous rolling line
Disk sorting area after wire laying machine
Post-forming finishing and conveying link of metal materials
End guide part in automatic cooling conveying system

Product Advantages

Sturdy and durable structure
Welded with high-strength steel plates, it has excellent impact resistance.
Smooth guidance, no jamming
Reasonable arc design, suitable for high-speed sliding of wire, not easy to chuck or jump the track.
Customizable structure
The curvature, length and width can be customized according to the layout of different rolling lines.
Easy to install and maintain
Modular splicing structure, easy to install and repair.
Low cost and stable performance
Simple structure, low manufacturing cost and high reliability.

Product Structure

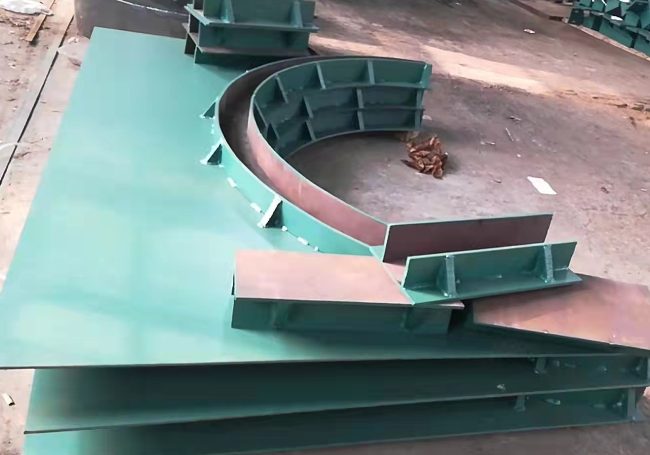

The mill tail plate (also called tail collecting plate guide groove or tail end guide plate) is mainly used for the tail collection and conveying link of high-speed wire or bar rolling line. Its main structure consists of the following parts:
Guide rail
It is composed of multiple arc structures welded together, forming a curved or circular track, which is used to guide the tail of the wire to move forward stably.
Base platform
The high-strength steel plate welded base carries the guide rail system and is firmly installed.
Side guide plate/reinforcement rib
Enhance the overall structural strength to prevent the wire from flying out of the track during high-speed movement.
Connection flange/bolt hole
It is convenient for connection and installation with other equipment (such as cooling bed, collection table, conveyor belt).
